Lined Plug Valves

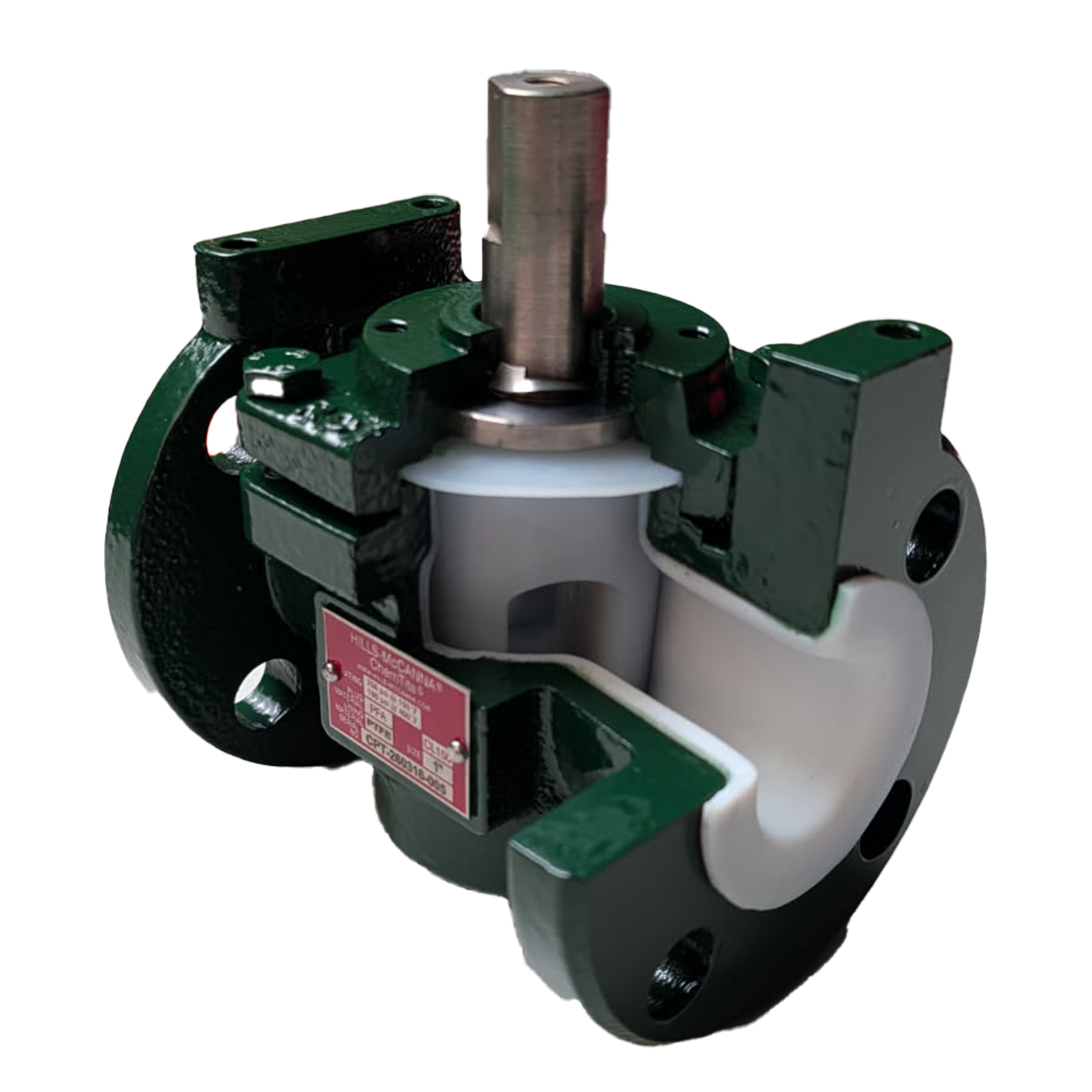

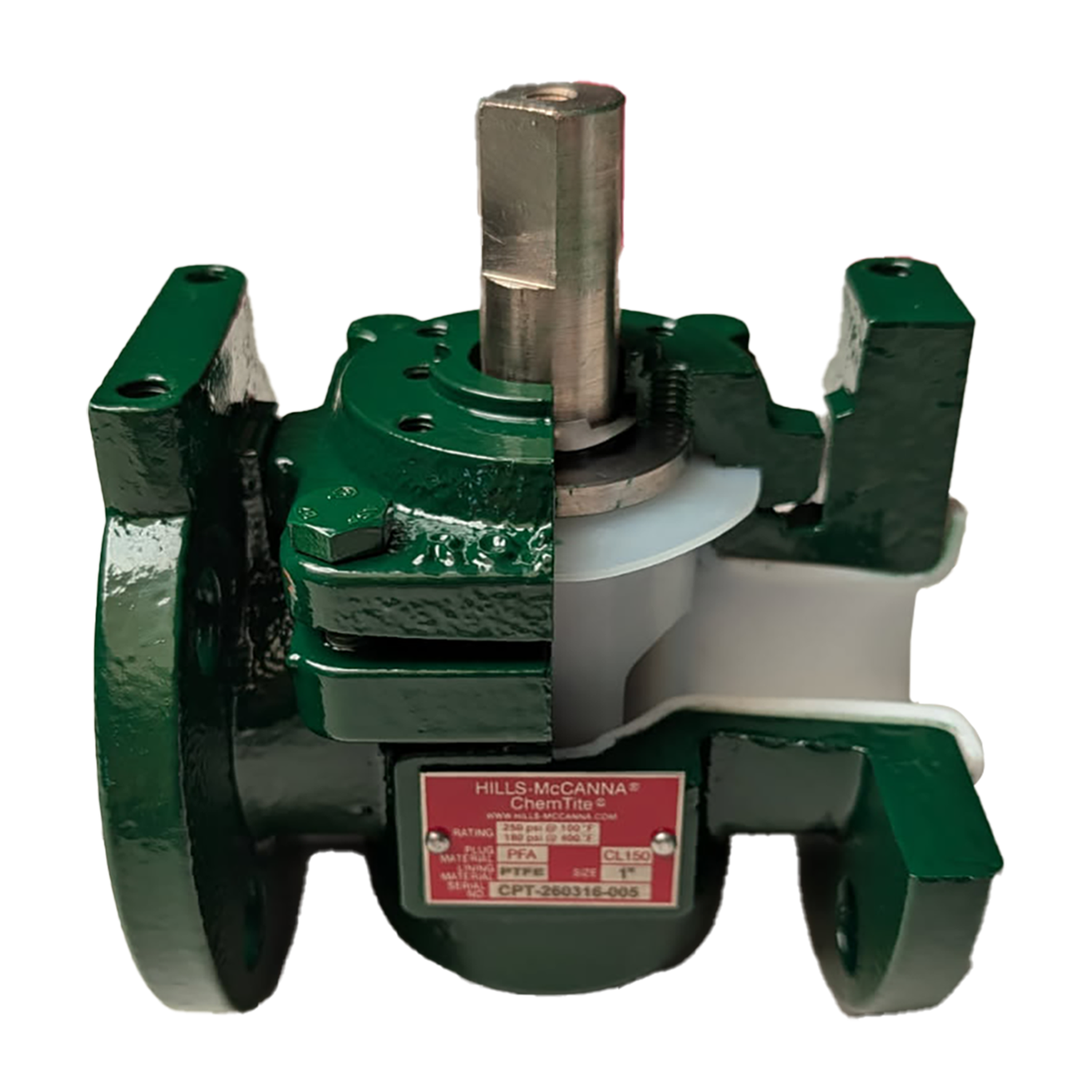

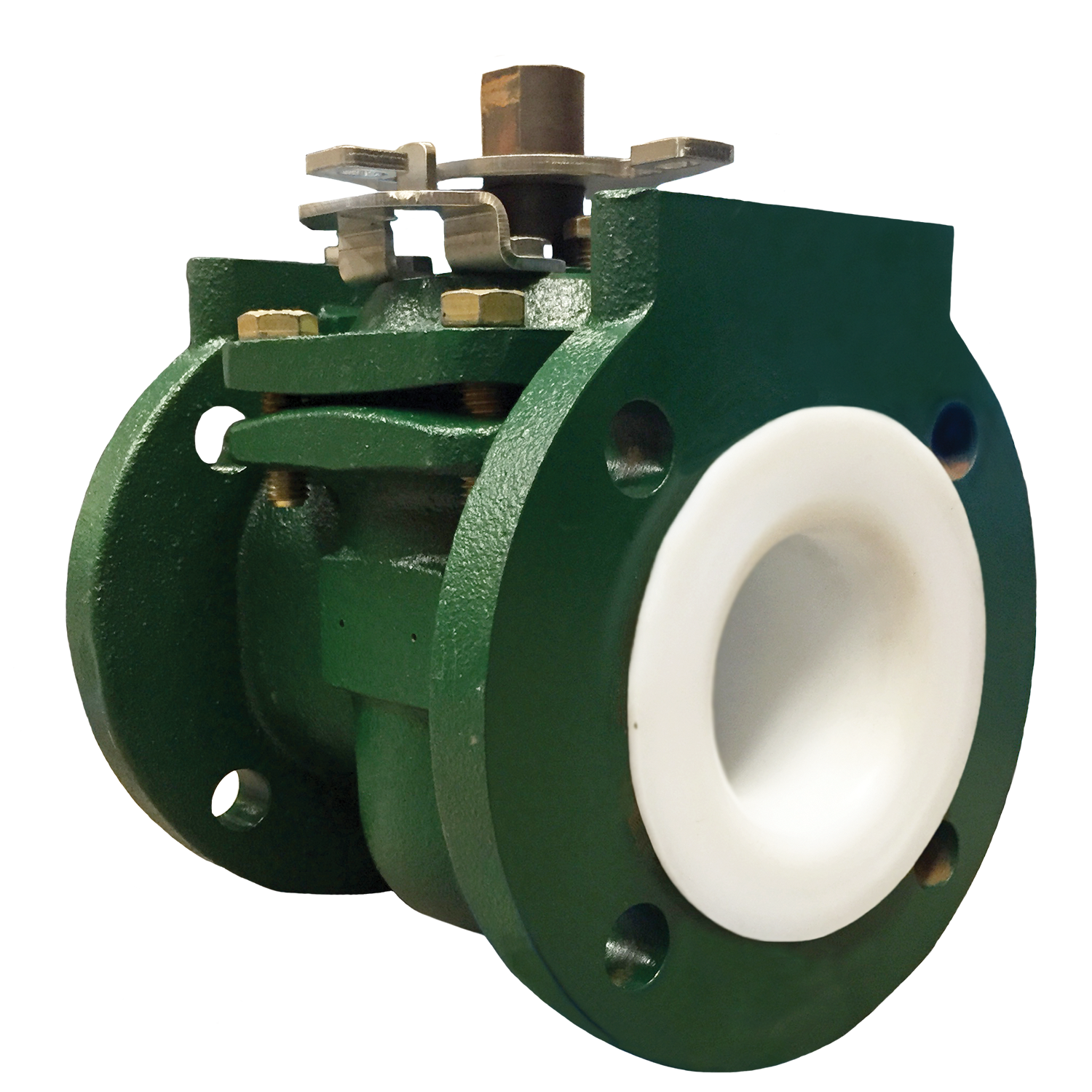

The ChemTite® Ethylene™ Fluoropolymer Lined Plug Valve features a one-piece heavy-duty PTFE lined plug valve body with a lockable handle and static ground spring. It has in-line adjustability, a PFA/DCi plug and a PFA reverse lip diaphragm.
Product Features & Benefits
- Bubble-Tight Design
- One-Piece Heavy-Duty TFM Liner (1", .75" PFA Lined)
- PFA/DCi Plug
- PFA Reverse Lip Diaphragm
- In-Line Adjustability
- One-Piece A395 DCi Body
- ASME B16.10 with ISO 5211 Mounting Pad and Flange Mounting Pad
- Lockable Handle and Static Ground Spring (standard)
- Size Range: 1" to 8"
- Pressure Rating: Full Vacuum to 250 psi (17.23 bar)
- Operating Temperature: (-)20°F to (+)400°F
- Resistant To All:
- acids
- solvents
- bleach solutions
- phenols
- caustics
- peroxides
- organic and inorganic chlorides & sulfates
Technical Details
Materials of Construction
Parts List
| Item | QTY | Description | Material |
| 1 | 1 | Valve Body | PTFE Lined ASTM A395 DCi |
| 2 | 1 | Plug | PFA Lined ASTM A395 DCi |
| 3 | 1 | Diaphragm | Virgin PFA |
| 4 | 1 | Thrust Collar | 17-4 PH Stainless Steel |
| 5 | 1 | Grounding Spring | 304 Stainless Steel |
| 6 | 1 | Top Cap | ASTM A395 DCi |
| 7 | 2 | Adjuster Bolt | ASTM A193, Yellow Zinc Plated GR.B7 |
| 8 | 4 | Top Cap Bolt | ASTM A193, Yellow Zinc Plated |
| 9 | 1 | Lockout Bracket | 304 Stainless Steel |
| 10 | 2 | Lockout Bracket Bolt | 18-8 Stainless Steel |
| 11 | 1 | Stop Collar | 304 Stainless Steel |
| 12 | 1 | Stop Collar Retainer | 304 Stainless Steel |
| 13 | 1 | Nameplate | Stainless Steel |
| 13 | 1 | Nameplate | Stainless Steel |
Actuator Sizing
| Valve Size | Torque @ Max. Diff. PSI | |
| Clean | Slury/Dry | |
| 1" | 398 in-lbs. | 540 in-lbs. |
| 1.5" | 504 in-lbs. | 684 in-lbs. |
| 2" | 720 in-lbs. | 972 in-lbs. |
| 3" | 1060 in-lbs. | 1464 in-lbs. |
| 4" | 2100 in-lbs. | 2835 in-lbs. |
| 6" | 5700 in-lbs. | 7695 in-lbs. |
| 8" | C/F | C/F |
Cv Data
| VALVE SIZE | FULL OPEN Cv |
| 1" | 35 |
| 1.5" | 92 |
| 2" | 201 |
| 3" | 355 |
| 4" | 790 |
| 6" | 1120 |
| 8" | 1440 |
Pressure Rating
Size Range
- Available size range: 1" to 8"
Operating Temperature
- (-)20°F to (+)400°F
